Khoom Description
LEANOS
Carbide DTH Hammer Button Bits yog cov cuab yeej tshwj xeeb drilling siv hauv Down-The-Hole (DTH) rauj drilling ua haujlwm. Cov khoom no yog tsim los txuas rau qhov kawg ntawm DTH rauj, ua qhov tseem ceeb ntawm kev sib cuag rau pob zeb tawg thiab drilling.
Carbide DTH Rauj Button Bits yog tsim los siv cov khoom zoo tungsten carbide inserts. Tungsten carbide muaj npe nrov rau nws qhov tshwj xeeb hardness, durability, thiab tsis kam hnav, ua rau nws yog ib qho khoom siv zoo tshaj plaws rau kev thov rau kev thov drilling.
Lub ntsej muag ntawm Carbide DTH Rauj Button Bit yog nruab nrog ntau lub pob me me, kheej kheej lossis cov pob khawm zoo li. Cov nyees khawm no, kuj yog ua los ntawm tungsten carbide, yog qhov chaw nyob rau ntawm lub ntsej muag me ntsis kom ntseeg tau tias cov pob zeb tawg tau zoo thiab kev tshem tawm sai ntawm cov chips thaum lub sijhawm drilling.
Specification
LEANOS
Technical Parameters Of Mission40 DTH Bits
|
Txoj kab uas hla |
Gauge Khawm |
Pem hauv ntej khawm |
Qhov hnyav (KG) |
Tshooj Naj Npawb |
||||
|
mm |
Ntiv |
Lub ntsej muag |
Lub ntsej muag Convex |
Concave ntsej muag |
Hom ntsej muag |
|||
|
115 |
4 1/2 |
Φ14*7 |
Φ14*2 |
Φ14*4 |
/ |
Lub ntsej muag Convex |
8.1 |
LR-MISSION40-115CV-1 |
|
115 |
4 1/2 |
Φ16*7 |
Φ14*2 |
Φ14*4 |
/ |
Lub ntsej muag Convex |
8.1 |
LR-MISSION40-115CV-2 |
|
115 |
4 1/2 |
Φ14*8 |
Φ14*2 |
Φ14*4 |
/ |
Lub ntsej muag Convex |
8.1 |
LR-MISSION40-115CV-3 |
|
125 |
4 15/16 |
Φ14*8 |
Φ13*3 |
Φ14*4 |
/ |
Lub ntsej muag Convex |
8.7 |
LR-MISSION40-125CV |
|
127 |
5 |
Φ14*8 |
Φ13*7 |
/ |
/ |
Lub ntsej muag |
8.8 |
LR-MISSION40-127FF |
|
130 |
5 1/8 |
Φ14*8 |
Φ14*7 |
/ |
/ |
Lub ntsej muag |
9.0 |
LR-MISSION40-130FF |
khoom zoo
LEANOS
Nce Drilling Ceev:
Ua tiav qhov drilling ceev mus txog 30% sai dua piv rau cov khoom siv pob khawm.
Piv txwv li: Carbide DTH Hammer Button Bits ua tiav qhov nruab nrab drilling ceev ntawm 2 meters ib feeb, thaum tus qauv khawm khoom ua tiav 1.5 meters ib feeb.
Enhanced Durability:
Ntxiv me ntsis lifespan txog li 50% piv rau cov qauv khawm khoom.
Piv txwv li: Carbide DTH Hammer Button Bits kawg kwv yees li 500 drilling meters, thaum tus qauv khawm khoom nyob ib ncig ntawm 300 drilling meters.
Optimal Rock Breaking:
Cov pob zeb tawg tau zoo thiab txhim kho nti khiav tawm ua rau kev ua haujlwm zoo dua qub thiab txo qis kev siv zog.
Piv txwv li: Carbide DTH Hammer Button Bits xav tau 20% tsawg zog piv rau cov qauv khawm cov khoom kom tawg tib lub pob zeb.
Versatility nyob rau hauv pob zeb Formations:
Haum rau drilling hauv ntau yam pob zeb formations, nrog rau abrasive thiab nyuaj formations.
Piv txwv: Carbide DTH Hammer Button Bits ua tau zoo heev hauv granite, basalt, thiab limestone formations.
Kev nkag siab ntau dua:
Kev nkag tau nrawm dua piv rau cov qauv khawm khoom.
Piv txwv li: Carbide DTH Rauj Button Bits ua tiav qhov nruab nrab qhov nkag ntawm 1 meter ib feeb, thaum tus qauv khawm khoom ua tiav 0.8 meters ib feeb.
Txhim kho qhov ncaj ncaj:
Minimizes qhov sib txawv thaum lub sijhawm ua haujlwm drilling.
Piv txwv li: Carbide DTH Hammer Button Bits tuav qhov sib txawv siab tshaj plaws ntawm 1% hauv qhov ncaj, thaum tus qauv khawm cov khoom muaj qhov sib txawv siab tshaj plaws ntawm 2%.
Txo Downtime:
Kev hloov me ntsis tsawg ua rau txo qis qis rau kev hloov me ntsis.
Piv txwv li: Carbide DTH Hammer Button Bits yuav tsum tau hloov me ntsis txhua 500 drilling meters, thaum tus qauv khawm cov khoom yuav tsum tau hloov txhua 300 drilling meters.
Nqi-effectiveness:
Kev txuag nyiaj mus sij hawm ntev vim kev ua neej ntev, txhim kho kev ua haujlwm zoo, thiab kev saib xyuas qis dua.
Piv txwv li: Carbide DTH Hammer Button Bits muab 20% txo rau tag nrho cov nqi drilling piv rau cov qauv khawm khoom.
Ua
LEANOS

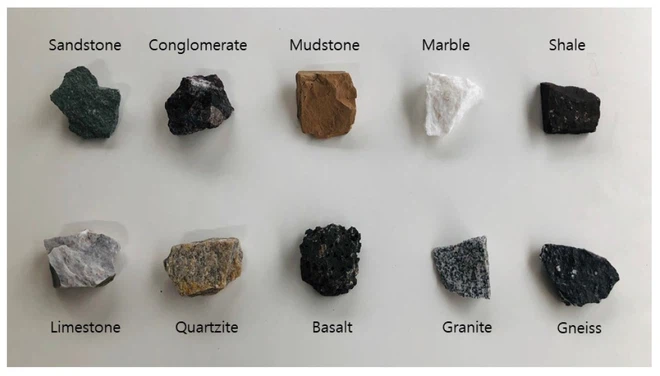

Thaum ntsib nrog cov pob zeb sib txawv, Carbide DTH Hammer Button Bits nthuav qhia cov yam ntxwv sib txawv. Nov yog cov ntsiab lus ntawm qhov lawv ua txawv ntawm ntau hom pob zeb:
Granite:
Carbide DTH Rauj Button Bits ua tau zoo nyob rau hauv drilling granite formations. Nrog lawv cov kev ua haujlwm siab drilling thiab qhov tshwj xeeb nkag mus, lawv tuaj yeem ua tau sai sai los ntawm cov tawv tawv thiab abrasive granite. Lub hardness thiab toughness ntawm cov carbide inserts ua rau lawv tiv taus cov kev xav tau, ua rau lub neej ntev me ntsis thiab txo hnav.
Basalt:
Basalt formations yuav tsum muaj peev xwm ua tau zoo pob zeb tawg, thiab Carbide DTH Hammer Button Bits xa tuaj xwb. Cov nyees khawm muaj zog carbide ntawm lub ntsej muag me ntsis zoo ua rau cov basalt tawg, thaum tus qauv tsim kom pom cov nti khiav tawm. Qhov kev sib xyaw ua ke no ua rau kev ua haujlwm du thiab tso cai rau kev nce qib hauv basalt formations.
Limestone:
Carbide DTH Hammer Button Bits ua tau zoo heev hauv cov pob zeb limestone. Lawv ua tau zoo hloov lub zog rau lub pob zeb, ua rau muaj kev ua haujlwm siab drilling. Lub abrasion tsis kam ntawm carbide inserts minimizes hnav me ntsis, tso cai rau lub sijhawm ntev drilling yam tsis muaj kev cuam tshuam kev ua haujlwm.
Sandstone:
Thaum drilling los ntawm sandstone formations, Carbide DTH Hammer Button Bits muab qhov sib npaug ntawm qhov drilling ceev thiab kav ntev. Lawv tuaj yeem nkag mus rau cov xuab zeb zoo thaum tswj xyuas lawv txoj kev ncaj ncees rau lub sijhawm ntev. Qhov tseeb qhov chaw ntawm cov nyees khawm carbide ua kom cov pob zeb tawg tau zoo thiab nti khiav tawm.
Shale:
Shale formations ua rau muaj kev sib tw tshwj xeeb vim lawv nyiam ua kom nkig ntau dua thiab ua rau tawg. Carbide DTH Hammer Button Bits yoog raws li cov xwm txheej no nrog lawv cov nti khiav tawm thiab kev cuam tshuam. Lawv txo qhov kev puas tsuaj me me thiab tswj kev ruaj ntseg thaum lub sijhawm ua haujlwm drilling hauv shale formations.
