Khoom taw qhia
::LEANOS
Kev txiav txim siab qhov zoo tshaj plaws DTH Rauj yog nyob ntawm ntau yam, suav nrog cov ntawv thov tshwj xeeb drilling, geological tej yam kev mob, thiab cov khoom siv drilling. Txawv DTH hammers ua tau zoo nyob rau hauv cov xwm txheej sib txawv.
Kev ua tsis tiav
::LEANOS

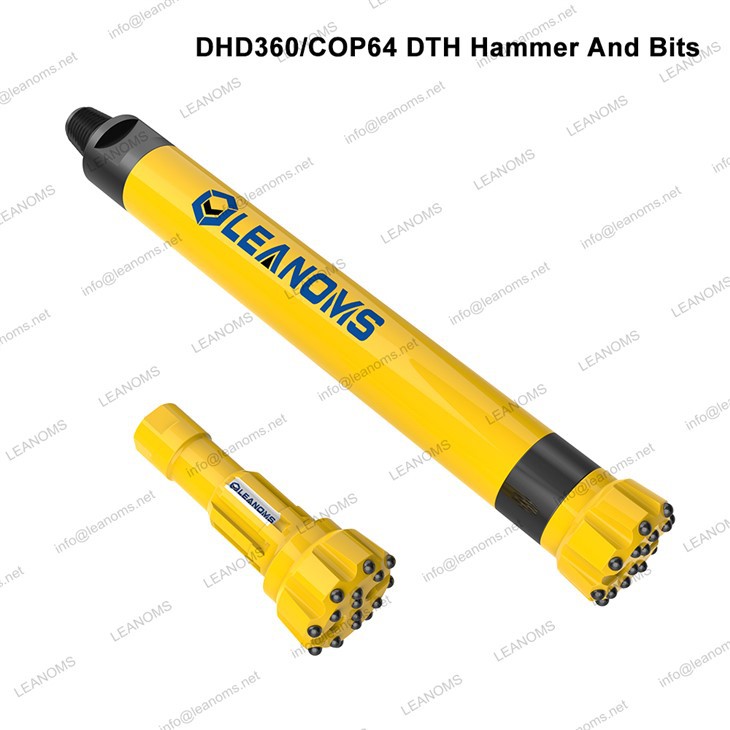

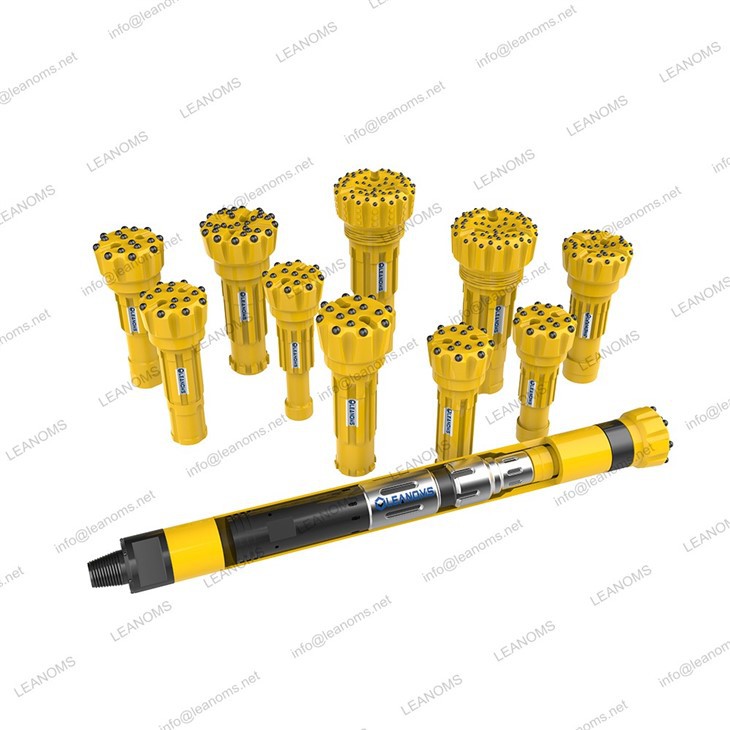

Qhov zoo tshaj plaws DTH Rauj yog ib qho tseem ceeb hauv kev lag luam drilling, siv rau drilling qhov hauv pob zeb, av, thiab lwm yam substrates. Lub DTH rauj ua haujlwm los ntawm kev siv cov cua compressed los tsav lub piston, uas ntaus ib lub laum me ntsis rau hauv qab ntawm lub qhov, tsoo pob zeb lossis av. Cov txheej txheem tsim khoom ntawm Qhov Zoo Tshaj DTH Hammer suav nrog ob peb kauj ruam:
Tsim thiab Engineering:
Cov txheej txheem pib nrog kev tsim thiab engineering ntawm qhov zoo tshaj plaws DTH Hammer. Cov kws tsim qauv tsim lub rauj kom tau raws li cov kev xav tau tshwj xeeb, suav nrog hom pob zeb lossis av yuav tsum tau drilled, qhov xav tau lub qhov taub, thiab qhov tob drilling.
Kev xaiv khoom siv:
Cov ntaub ntawv zoo yog xaiv rau ntau yam khoom ntawm Qhov Zoo Tshaj DTH Rauj, suav nrog lub cev, piston, valve, thiab laum me ntsis. Cov ntaub ntawv no raug xaiv rau lawv cov kav ntev thiab tsis kam hnav thiab tsim kua muag.
Machining thiab Fabrication:
Cov ntaub ntawv xaiv tau raug txiav thiab tsim rau hauv cov khoom sib txawv ntawm qhov zoo tshaj plaws DTH Rauj. CNC (Computer Numerical Control) cov cav tov feem ntau siv los xyuas kom meej thiab sib xws hauv cov txheej txheem tsim khoom.
Kev kho cua sov:
Qee cov khoom siv, xws li lub piston thiab laum me ntsis, tuaj yeem ua cov txheej txheem kho cua sov los txhim kho lawv cov hardness thiab durability. Cov txheej txheem kho cua sov tuaj yeem suav nrog quenching thiab tempering.
Kev sib dhos:
Thaum tag nrho cov khoom tsim tau npaj txhij, lawv tau sib sau ua ke rau hauv Qhov Zoo Tshaj DTH Rauj. Qhov no suav nrog haum lub piston, valve, thiab lwm yam khoom siv rau hauv lub cev rauj.
Kev Tswj Xyuas Zoo:
Kev tswj kom zoo yog ib kauj ruam tseem ceeb hauv kev tsim khoom. Txhua Qhov Zoo Tshaj DTH Rauj yog ua tib zoo tshuaj xyuas qhov tsis xws luag, qhov ntev, thiab kev sib dhos kom raug. Qhov no ua kom lub rauj ua tau raws li qhov xav tau tshwj xeeb thiab cov qauv.
tsis ua hauj lwm tsom xam
LEANOS
| Lub DTH Hammer tsis tuaj yeem pib | 1. Muaj av nkos lossis av hauv DTH Rauj. | 1. Tshem tawm, ntxuav, tshuaj xyuas thiab kho. Xyuas seb lub check valve puas zoo li qub. |
| 2. Kev puas tsuaj rau lub taub hau taub hau. | 2. Hloov lub taub hau taub hau thiab xyuas lub tes tsho qhia thiab sab pem hauv ntej. | |
| 3. Sab hauv cov khoom puas lawm. | 3. Hloov cov khoom puas. |
khoom parameter
LEANOS

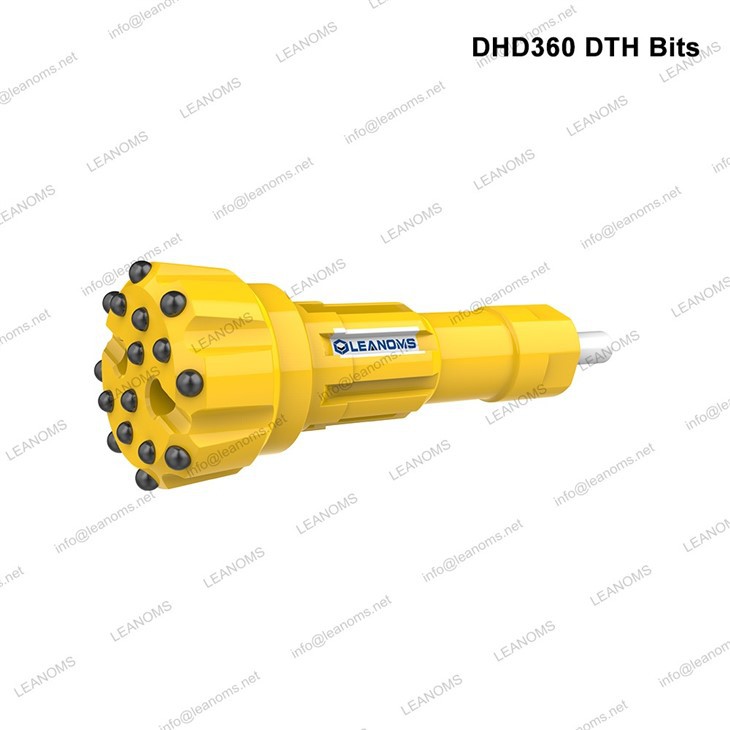

Technical Parameters ntawm DHD360 Rauj ntsis
| Txoj kab uas hla | Gauge Khawm (mm) |
Pem hauv ntej khawm (mm) | Qhov hnyav (KG) | Tshooj Naj Npawb | ||||
| mm | Ntiv | Lub ntsej muag | Lub ntsej muag Convex | Concave ntsej muag | Hom ntsej muag | |||
| 165 | 5 1/2 | Φ18*8 | Φ16*8 | / | / | Lub ntsej muag | 24.6 | LR-DHD360-165FF |
| 165 | 5 1/2 | Φ18*8 | Φ16*4 | Φ16*4 | / | Lub ntsej muag Convex | 24.4 | LR-DHD360-165CV |
| 165 | 5 1/2 | Φ18*8 | Φ16*4 | / | Φ15*4 | Concave ntsej muag | 24.1 | LR-DHD360-165CC |
| 171 | 6 3/4 | Φ18*8 | Φ16*6 | / | Φ16*4 | Concave ntsej muag | 24.8 | LR-DHD360-171CC |
| 178 | 7 | Φ18*8 | Φ16*6 | / | Φ16*4 | Concave ntsej muag | 25.4 | LR-DHD360-178CC |
| 190 | 7 1/2 | Φ18*10 | Φ16*8 | / | Φ16*5 | Concave ntsej muag | 26.9 | LR-DHD360-190CC |
Ntim
LEANOS
Kev ua tau zoo yog qhov tseem ceeb: Peb lees paub tias kev ua tau zoo yog qhov tseem ceeb hauv kev thauj mus los niaj hnub no. Peb cov txheej txheem kev thauj mus los yog tsim los txo cov sij hawm txhuas thiab txo cov nqi, kom ntseeg tau tias koj tau txais koj cov khoom sai thiab ntawm tus nqi sib tw.
Kev Nyab Xeeb Ua Ntej: Kev nyab xeeb yog qhov tseem ceeb tshaj plaws hauv peb txoj haujlwm kev thauj mus los. Peb daim ntawv pov thawj IS45001 qhia peb txoj kev mob siab rau kev noj qab haus huv ntawm peb cov neeg ua haujlwm thiab cov neeg koom tes, nrog rau kev nyab xeeb ntawm koj cov khoom thaum caij tsheb npav.
